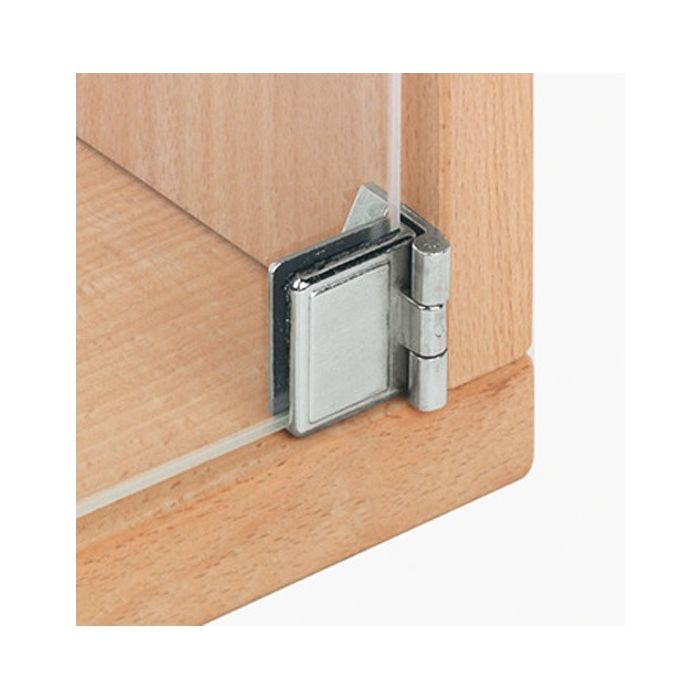

1604 Inset Glass Door Corner Clamping Hinge
In stock
SKU
4664-1
From
£9.00
£10.00
Inset glass door furniture corner hinges require no glass processing and are therefore perfect for retrofitting. For a high level of operating convenience, they are also equipped with a catch.
Application note: Please allow upper and lower gap distances of 2.5 mm and 4mm at the sides.
Hinge size (Width X Height): 35 x 26mm
Glass thickness: 5 - 6mm
Maximum door weight per pair: 10kg
Maximum door size: 600 x 1000mm
Material: Zinc die casting
Finishes: Chrome-plated or Matt Black
Mounting type: Glass-wood
Opening angle: 170°
Opening direction: DIN left and DIN right
Price is per pair. A hinge for the top and a hinge for the bottom to make a single door.
Application note: Please allow upper and lower gap distances of 2.5 mm and 4mm at the sides.
Hinge size (Width X Height): 35 x 26mm
Glass thickness: 5 - 6mm
Maximum door weight per pair: 10kg
Maximum door size: 600 x 1000mm
Material: Zinc die casting
Finishes: Chrome-plated or Matt Black
Mounting type: Glass-wood
Opening angle: 170°
Opening direction: DIN left and DIN right
Price is per pair. A hinge for the top and a hinge for the bottom to make a single door.
