Axim PR7085 Concealed Rod Panic Paddle Handle Exit Device
In stock
SKU
5061-1-1
£192.00
£160.00

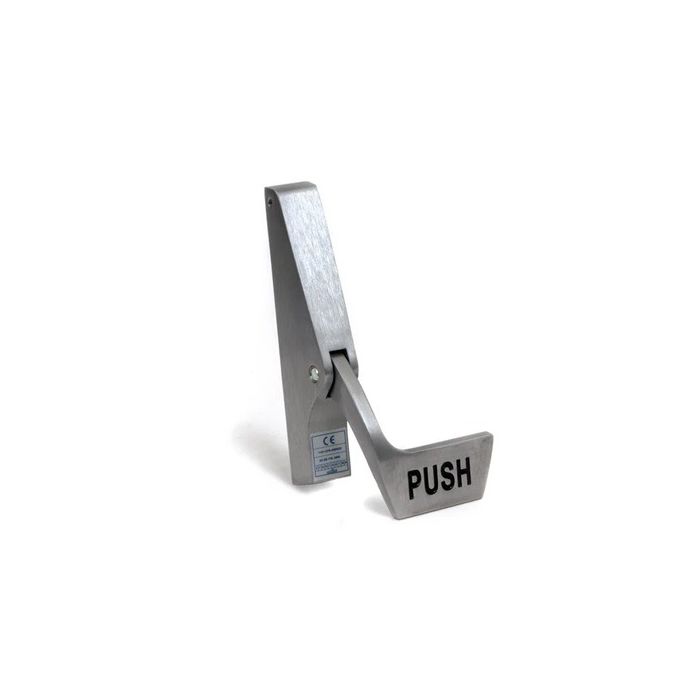

Axim PR7085 concealed rod panic paddle handle exit device provides two point locking at the top and the bottom of the door. The concealed rod panic paddle handle is an emergency device installed to the opening jamb with a push paddle handle with engraved “PUSH” compliant to BS EN 179.
Operating paddle handle and lever do not exceed 120mm x 186mm projection.
Technical Information:
- Heavy duty lever springs and internal mechanism for durable operation of lever and arm.
- Plated steel and stainless steel components.
- 8.5mm diameter, steel locking rods with 16mm bolt through.
- Bolt length adjustable ensuring correct alignments.
- Standard model suitable for all widths of doors and 2135mm high.
- Available with standard mortice rim cylinder and mounting pad allowing external access.
- Permanent bolt retention for easy external access.
- Permanent bolt retention for easy access can be achieved with cylinder key or dogging pin to the underside of the operating lever.
Finish: Satin Chrome
Operating paddle handle and lever do not exceed 120mm x 186mm projection.
Technical Information:
- Heavy duty lever springs and internal mechanism for durable operation of lever and arm.
- Plated steel and stainless steel components.
- 8.5mm diameter, steel locking rods with 16mm bolt through.
- Bolt length adjustable ensuring correct alignments.
- Standard model suitable for all widths of doors and 2135mm high.
- Available with standard mortice rim cylinder and mounting pad allowing external access.
- Permanent bolt retention for easy external access.
- Permanent bolt retention for easy access can be achieved with cylinder key or dogging pin to the underside of the operating lever.
Finish: Satin Chrome
Click on the icon below to download our free documents relating to the Axim PR7085 Concealed Rod Panic Paddle Handle Exit Device. Thank you.
