Model 23 Black Balustrade Clamp for Indoor use

Skip to the end of the images gallery

Skip to the beginning of the images gallery

In stock

SKU

3578-BLK

Your price £31.51 £33.36 Regular Price £31.51

On Offer for this Month Only.

Offer ends on August 31st

Click here to see all products with similar discounts.

Description

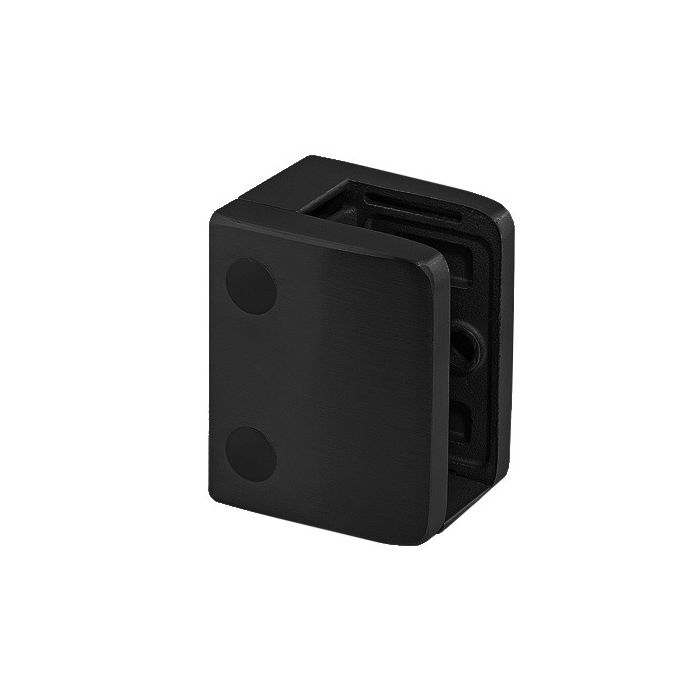

Black Model 23 glass clamp, square shape with flat back. Perfect for both residential and commercial projects.

Supplied with rubber inlays to suit;
Monolithic Glass: 12mm, 15mm, and 19mm.
Laminated Glass: 12.76mm, 13.52mm, 16.52mm, 17.52mm, 20.76mm, and 21.52mm.

Size: 70 x 55 x 44mm. Glass to wall deduction: 20mm.

Finish: Black RAL 9005
Material: Stainless steel suitable for internal use.

Optional safety pin available, requires 10mm Ø holes in glass. Sold separately.

For outdoor installations always use 316 Grade stainless steel.

Downloads

Click on the icon below to download our free documents relating to the Model 23 Black Balustrade Clamp for Indoor use. Thank you.

Model 24 Test Results for Top Mounting

Model 24 Test Results for Fasic Mounting
